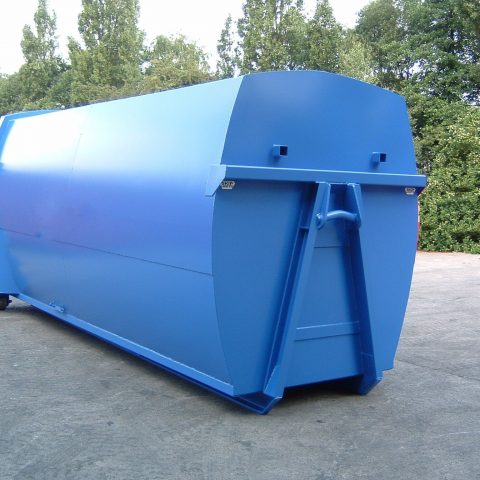

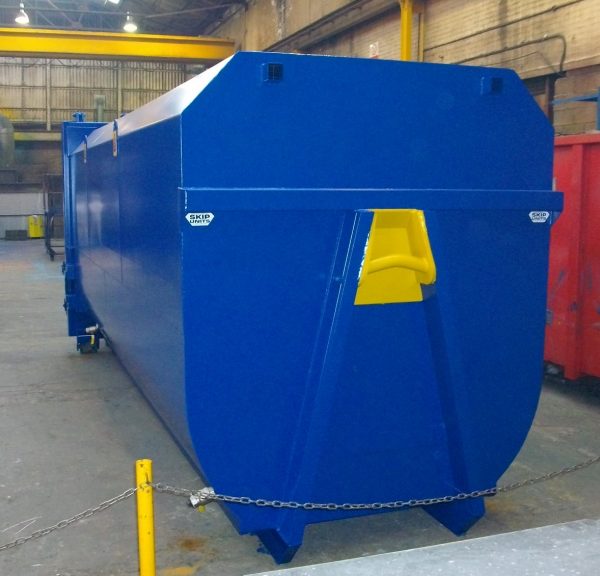

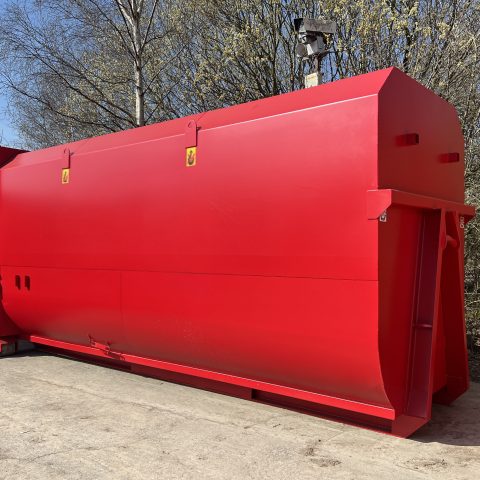

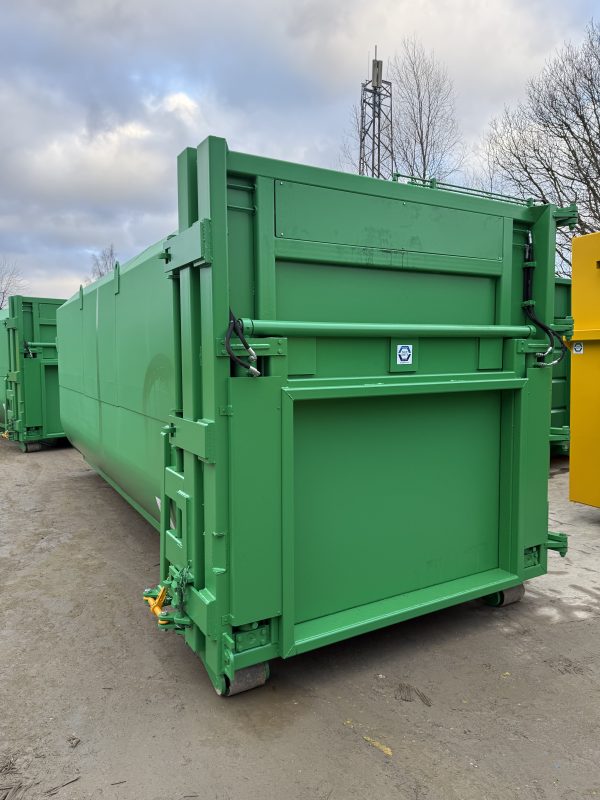

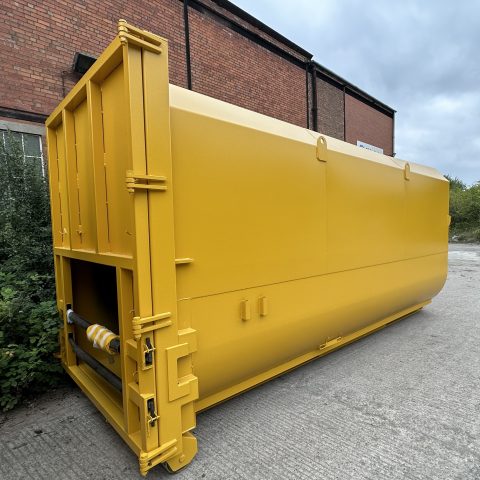

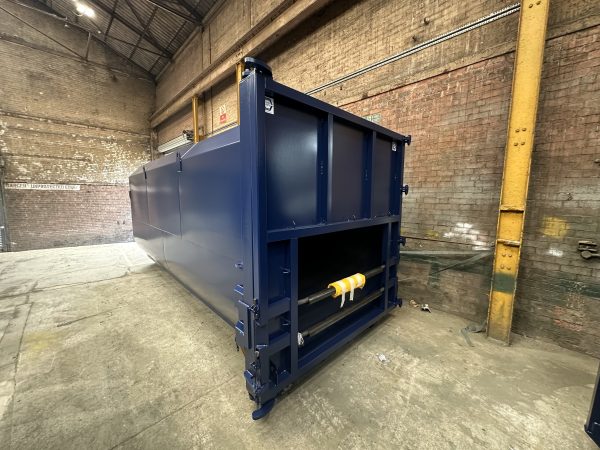

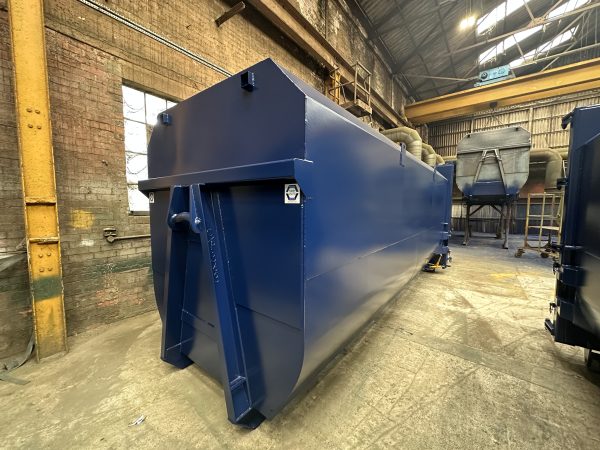

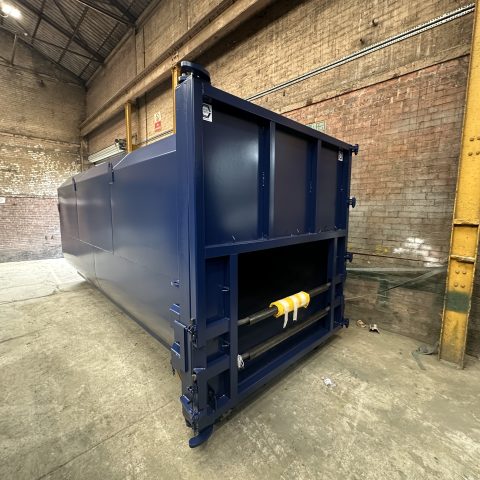

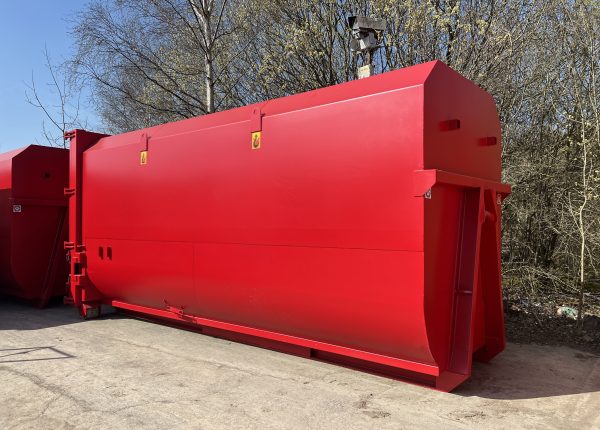

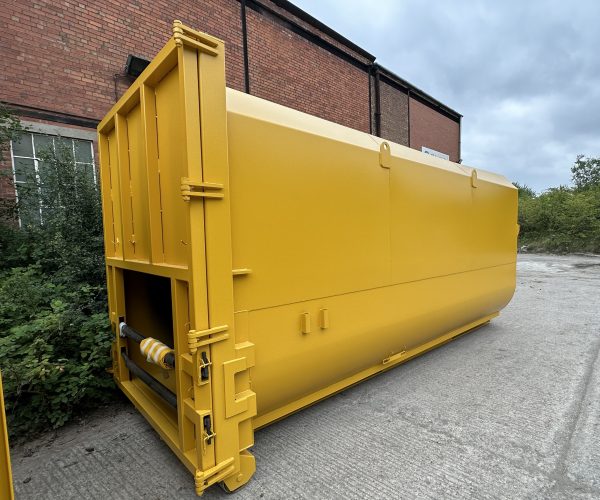

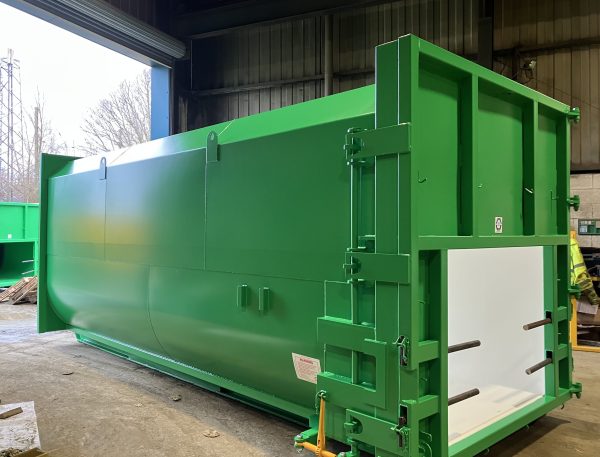

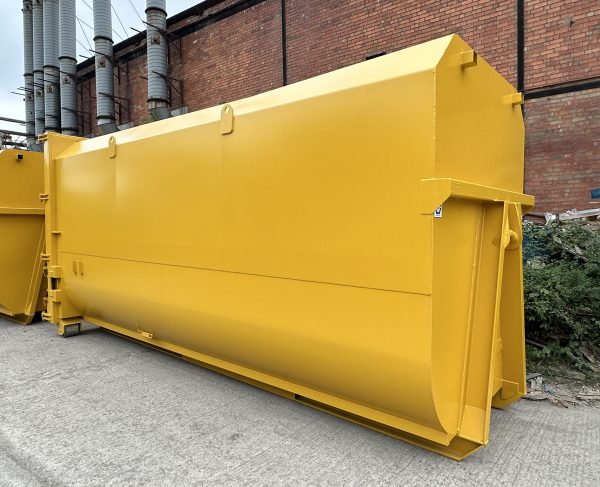

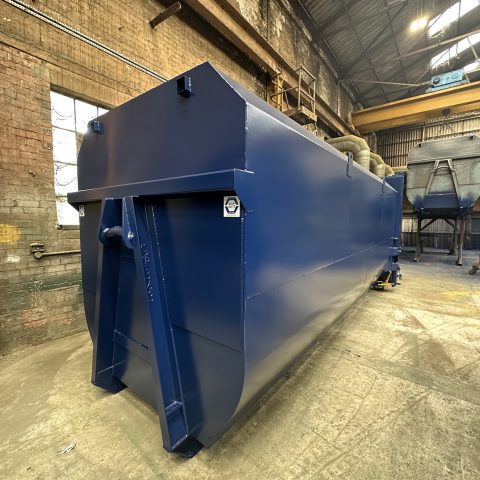

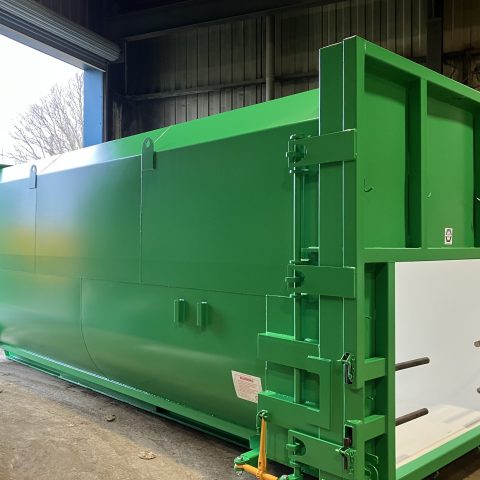

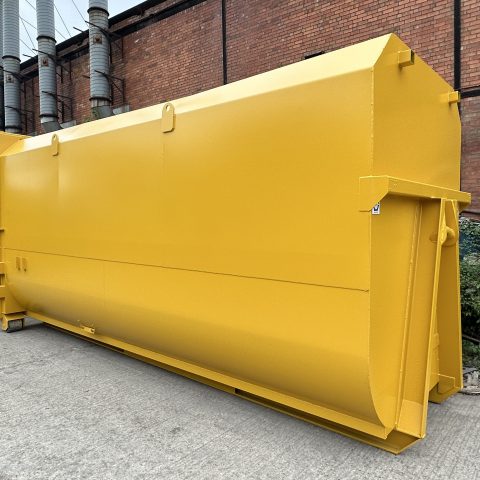

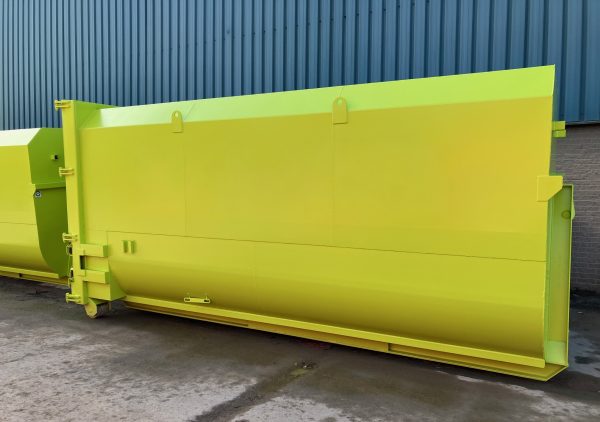

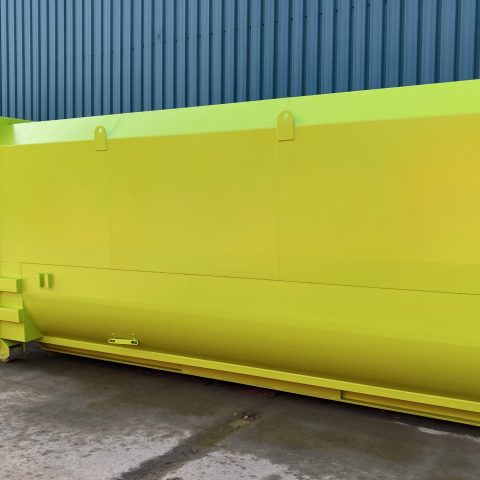

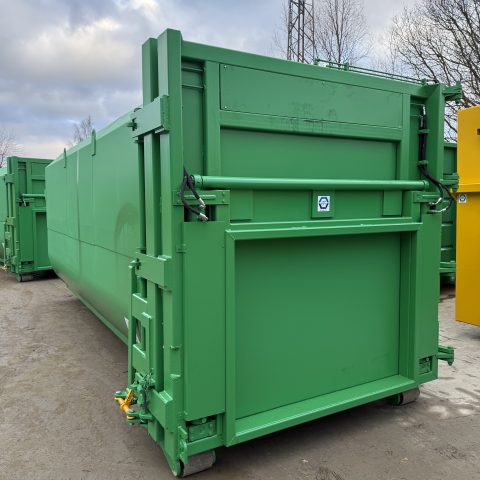

Smoothcurve

Smoothcurve standard specification

• To suit Hooklift lifting equipment
• 5mm base

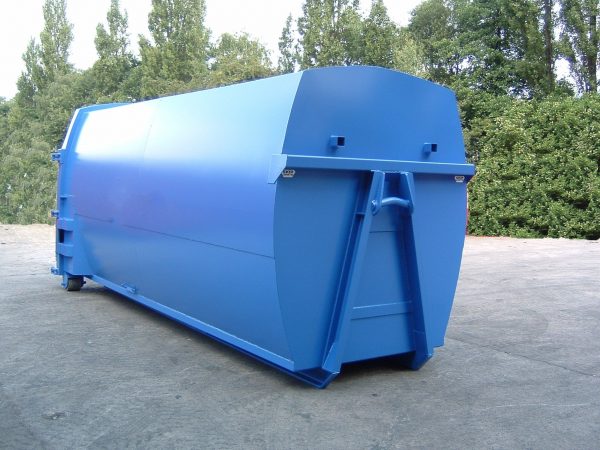

• 4mm headboard
• 5mm lower sides, 4mm upper sides and 3mm roof

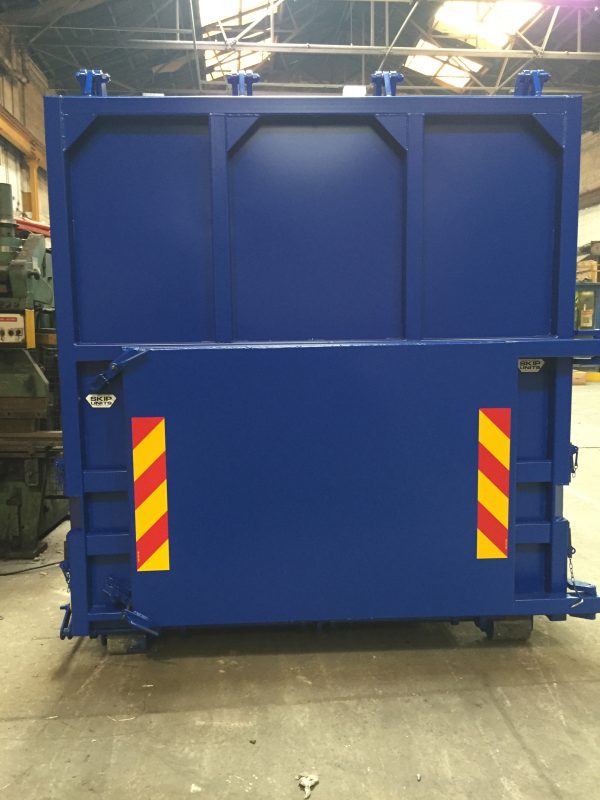

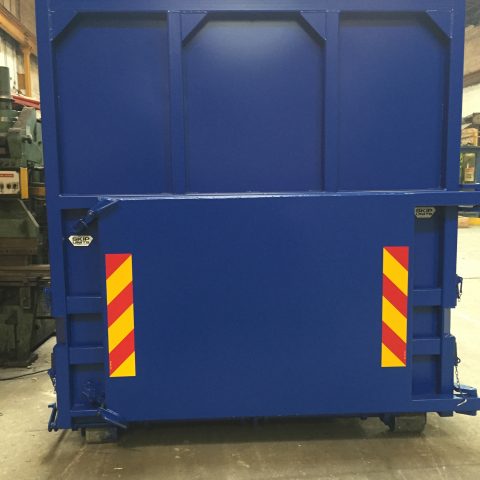

• Single universal door with ratchet or turnbuckle locking gear
• Secondary locking pin
• Grease nipple on hinges/rollers
• Weld numbers
• Fully welded side seams
• 2 free running rollers

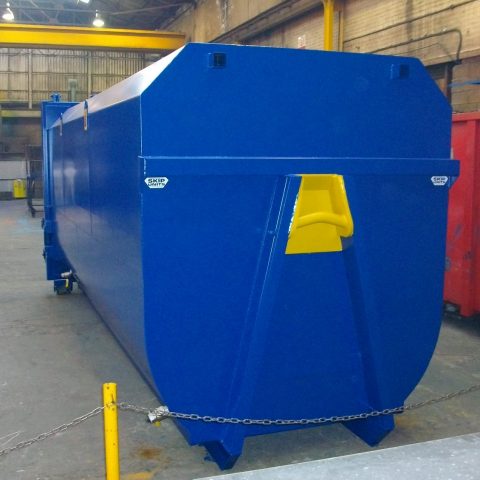

• Striker plate and safety deflector plate
• Single tapered sides
• Lower internal deflector plate
• “C” plate to suit CHEM standard
• 2 tubes, 4 pins and PVC cover
• 2 vent holes in headboard

Optional extras

• Cattle ramp fastener locking (for top hinged doors)

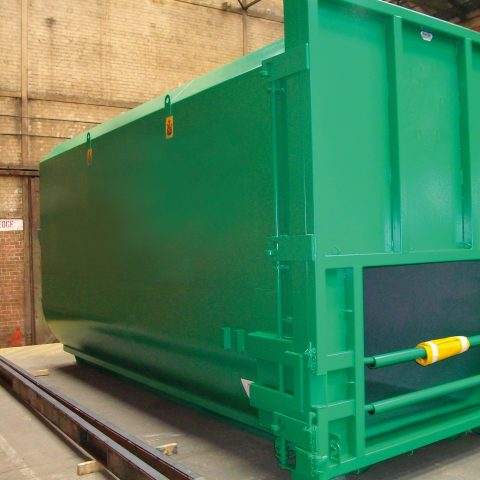

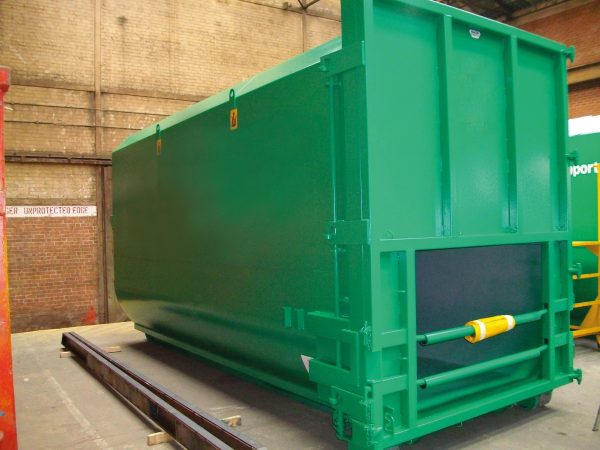

• Over aperture door
• Sealed main door and sealed over aperture door
• Full web plate
• Male/female door guides
• Signboards
• 2 colours
• Vinyls/stencil
• Marker boards
• Protective edge for marker boards
• Poly covered rollers with bearings

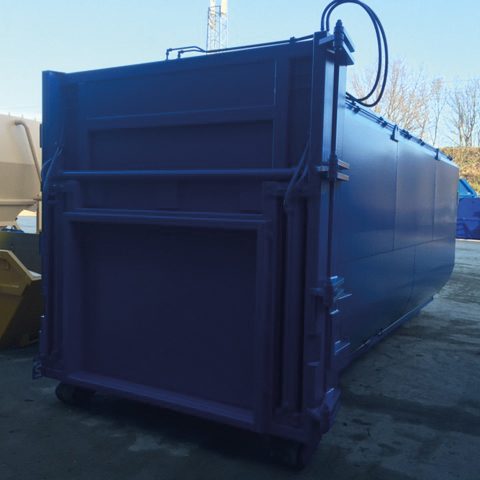

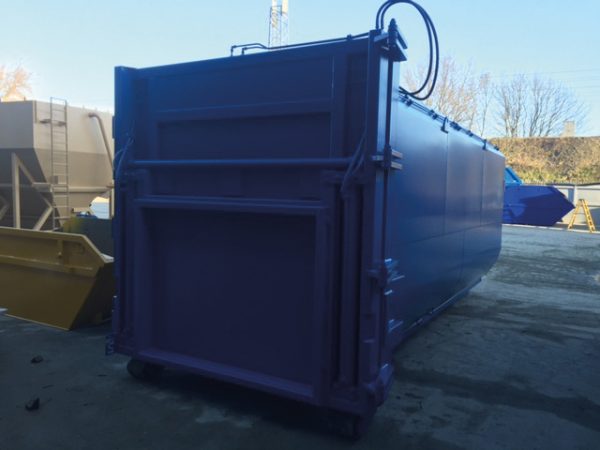

• Sealed special application guillotine door hydraulically operated
• Double taper
• Infills base
• Extra x members

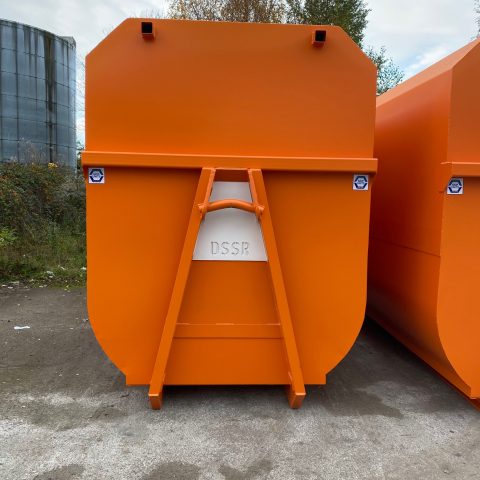

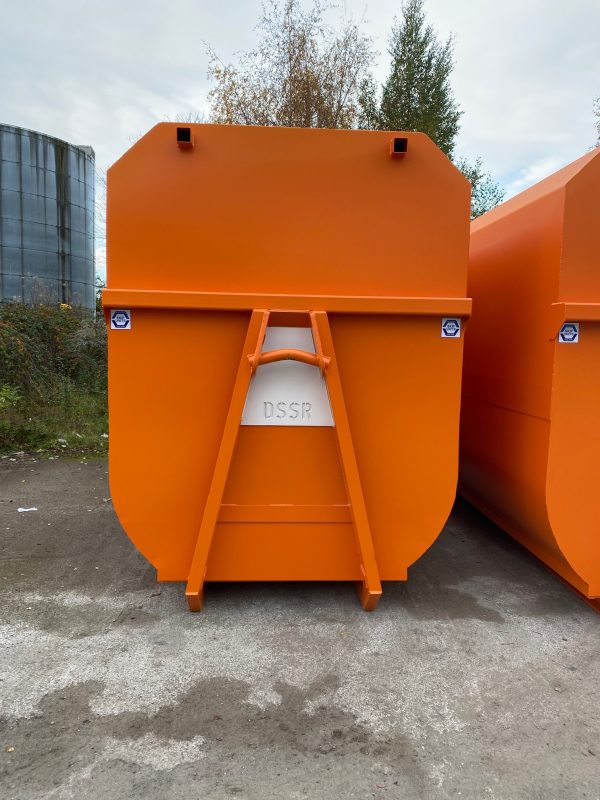

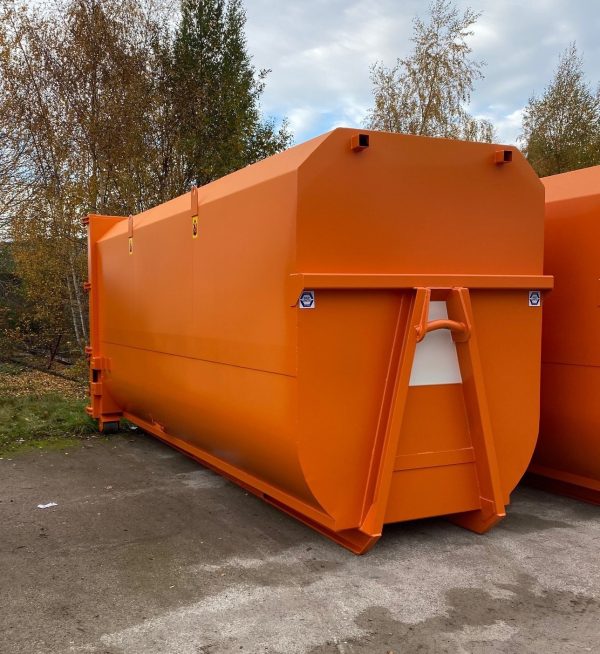

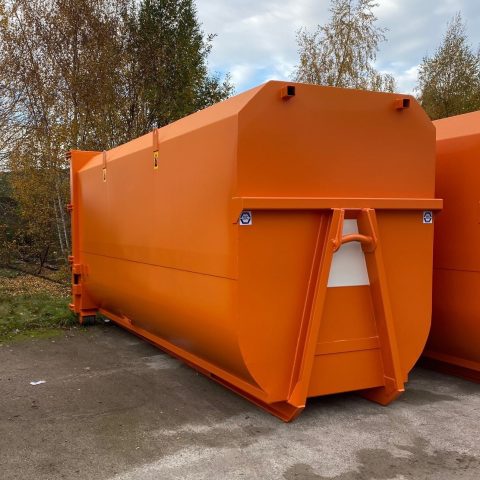

• Extended striker plate
• Extra rollers
• Removable rollers

We can manufacture larger sizes if required, including compaction containers for articulated vehicles.
