Standard specification
- To suit standard REL/Skiplift equipment

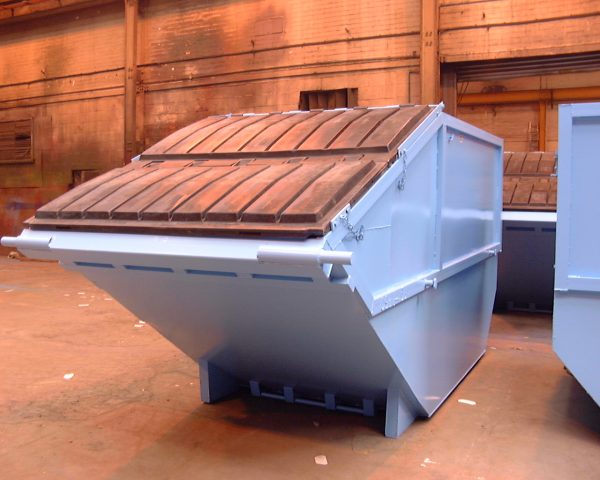

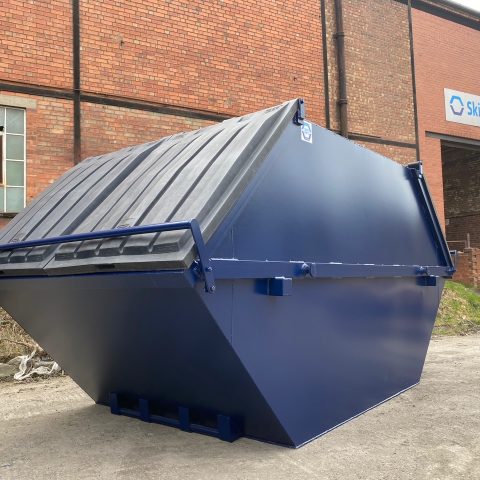

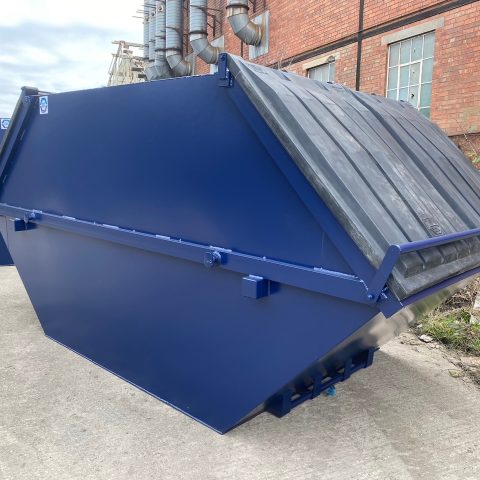

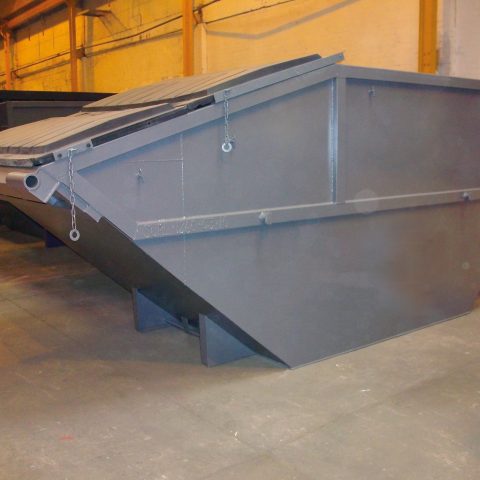

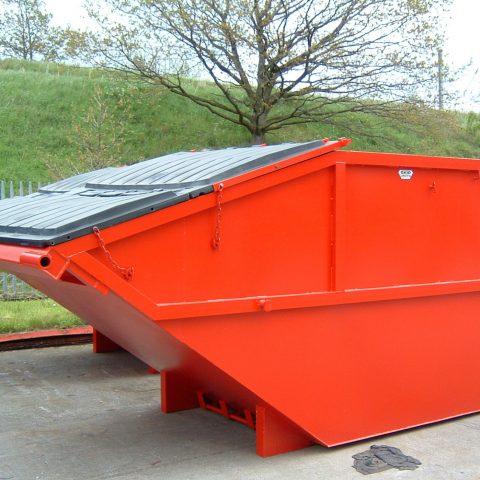

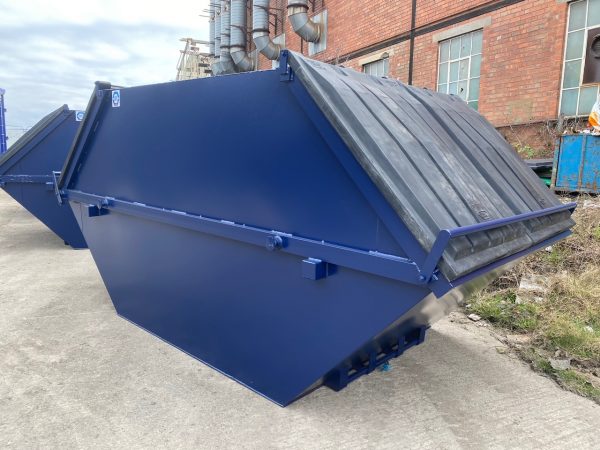

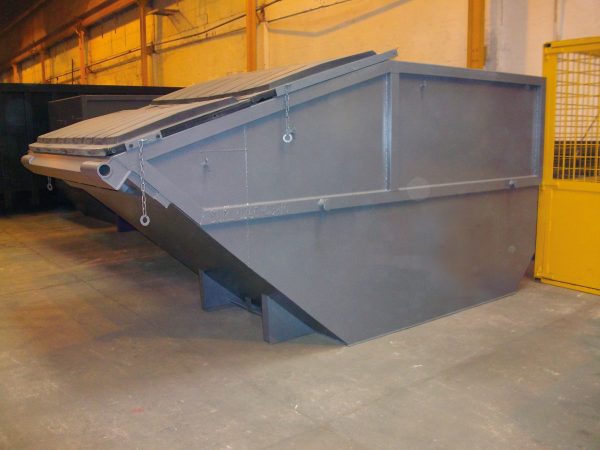

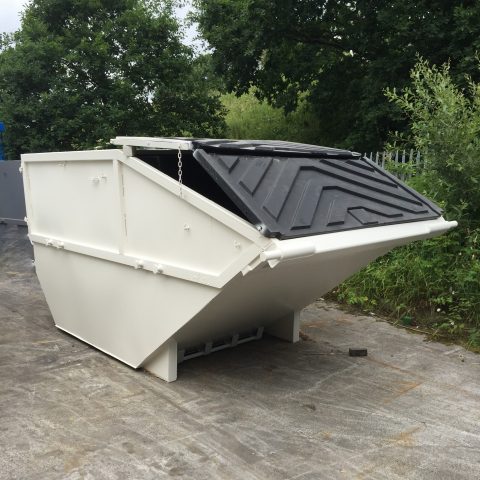

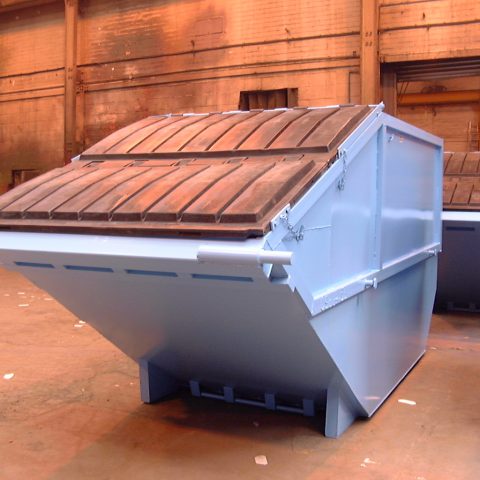

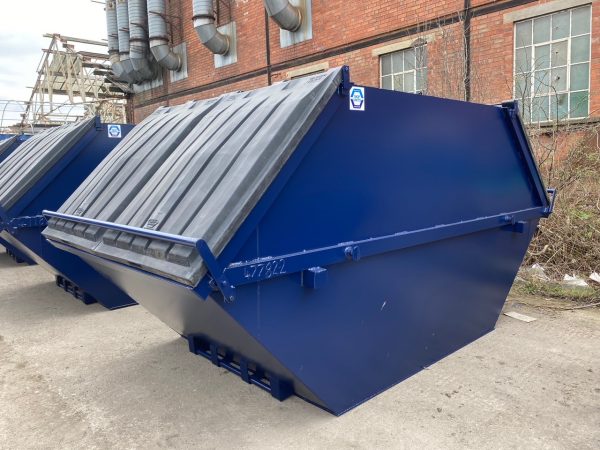

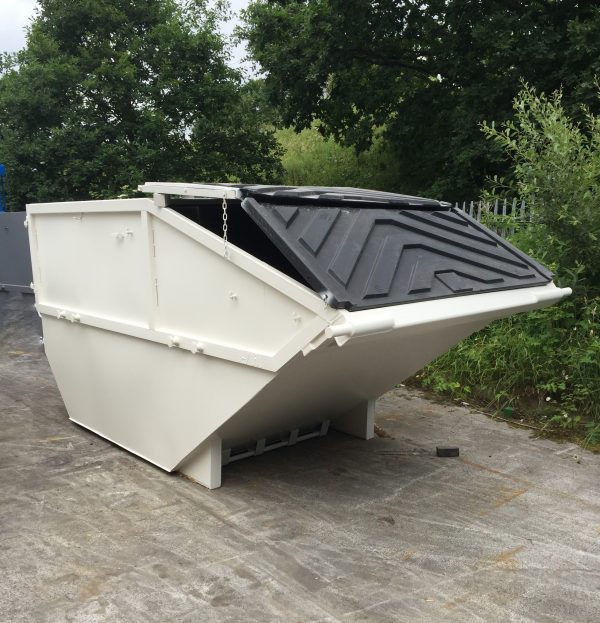

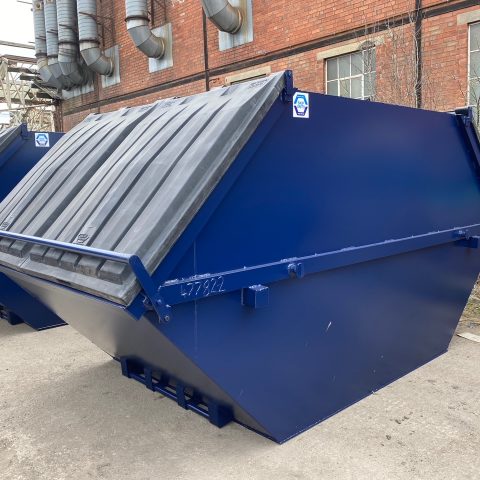

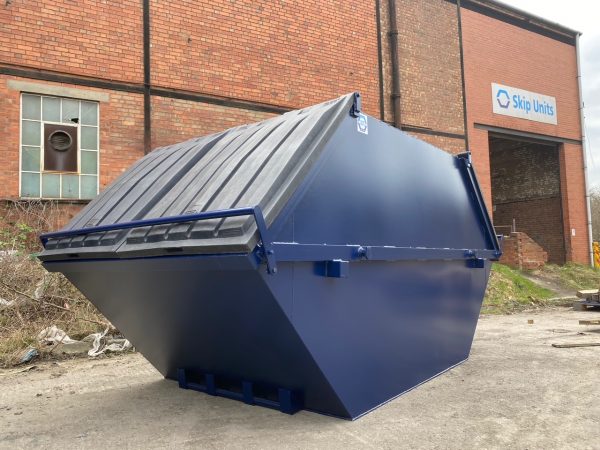

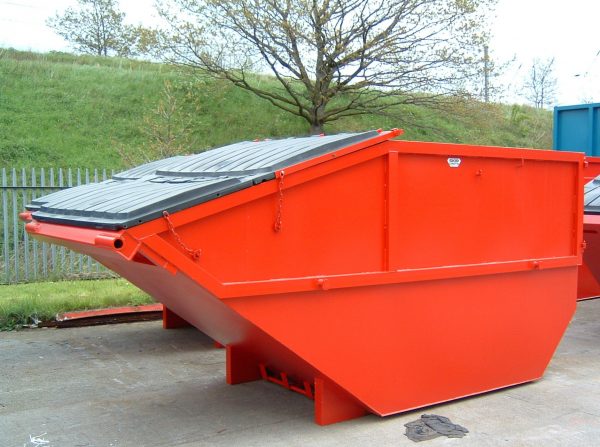

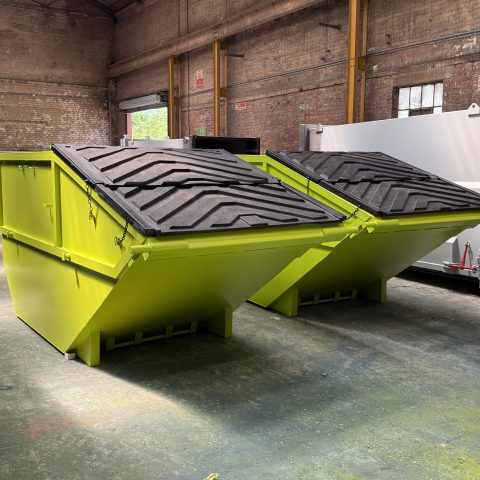

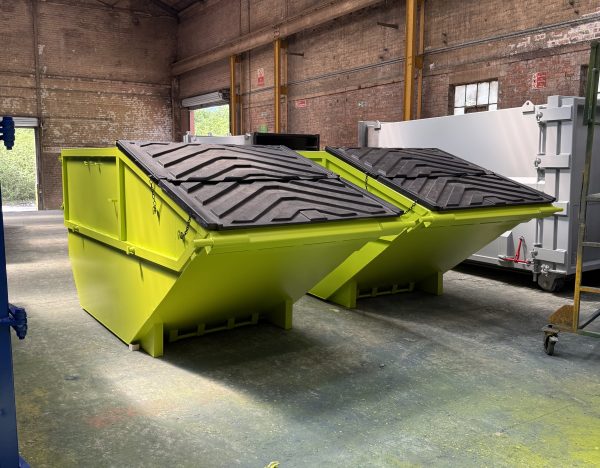

- Complete with lockable plastic lids
- 4mm base and tip end
- 3mm non tip end, sides and roof

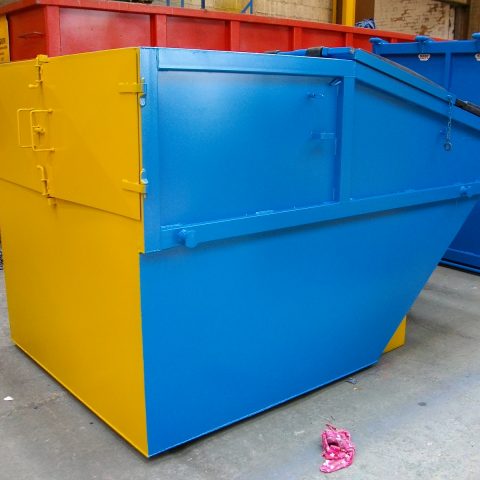

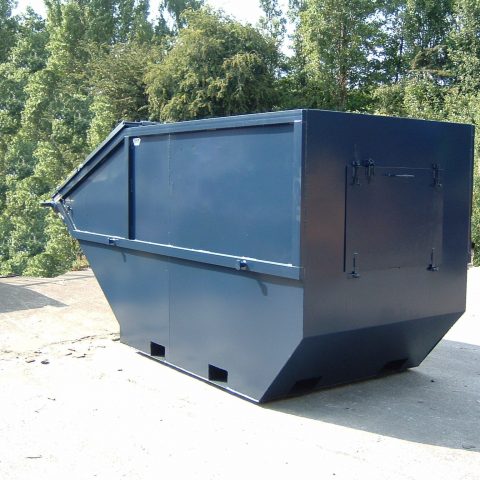

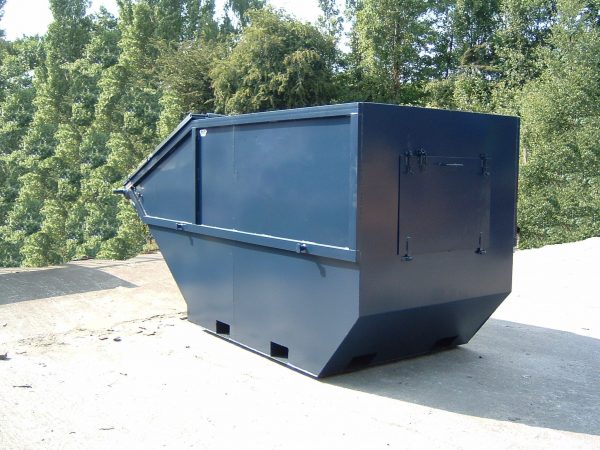

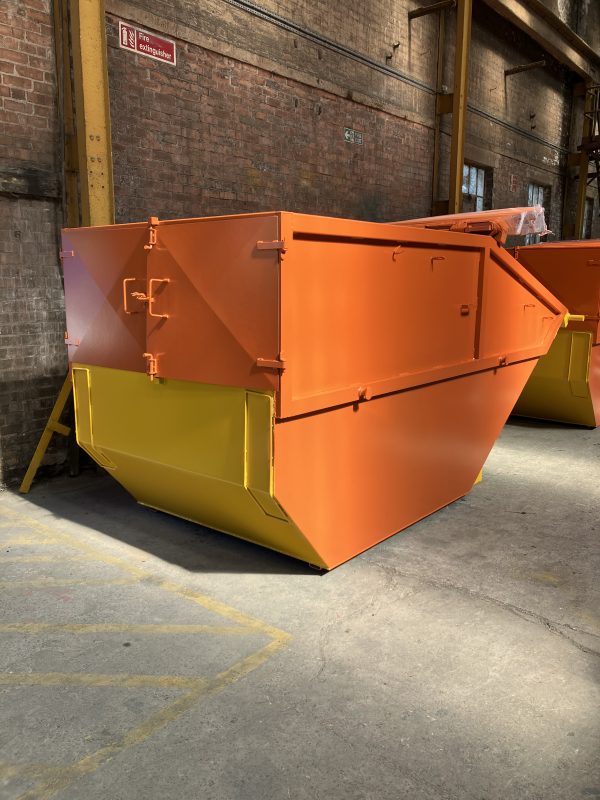

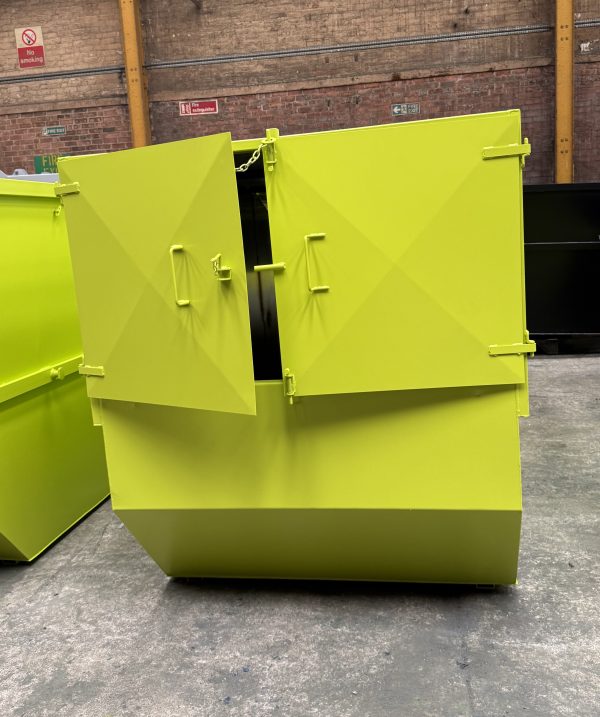

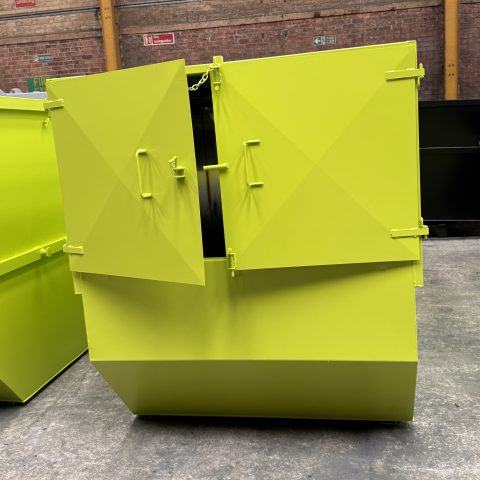

- Double side opening rear doors or single drop-down rear door
- Spring bolts on door
- Sockets for loose pins
- Standard tipping bar
- Double rail
- Securing chains min 4mm diameter
- Forged lifting lugs with backing plate
- Fully welded external seams and stitched channels
- Stabilisers
- Weld numbers
Optional extras

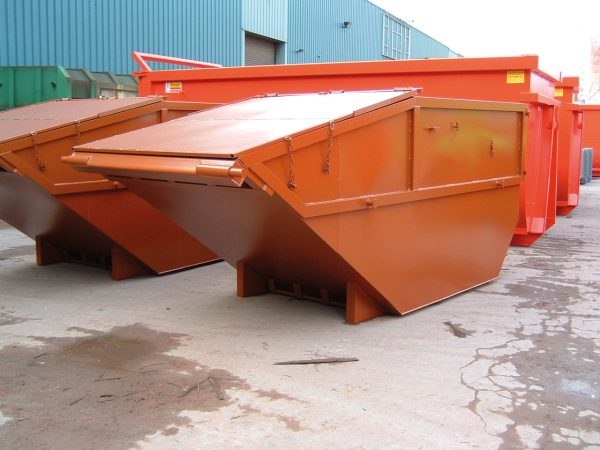

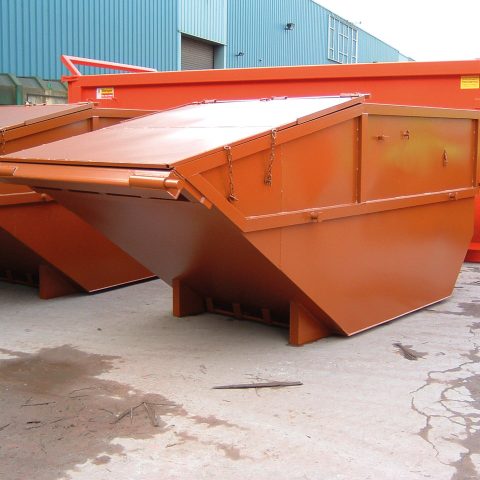

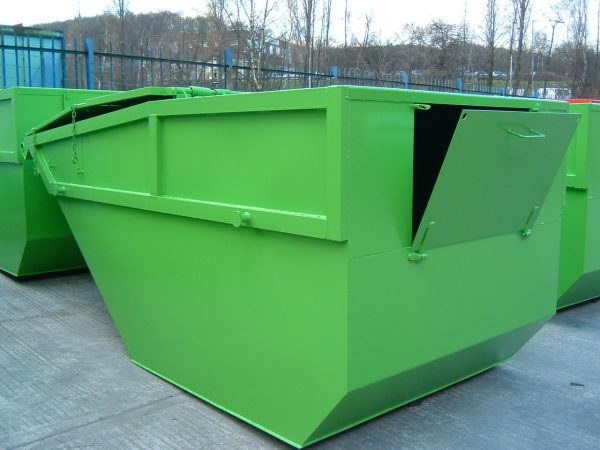

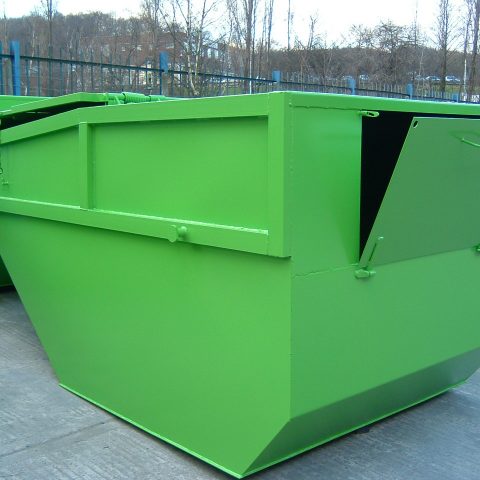

- Steel lids
- Loose pins
- Fixed pins
- Integral pins
- Finger locks
- Profiled ID plates

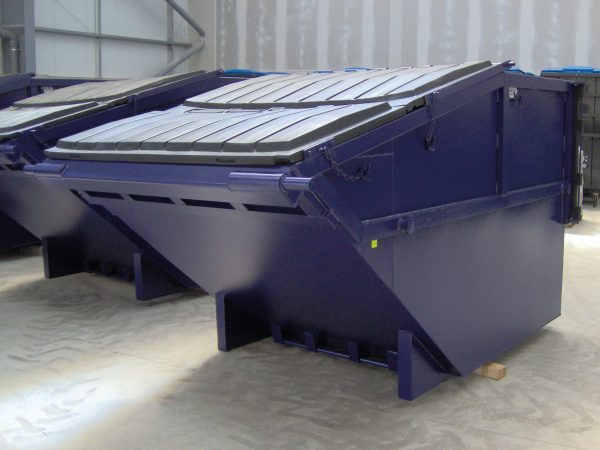

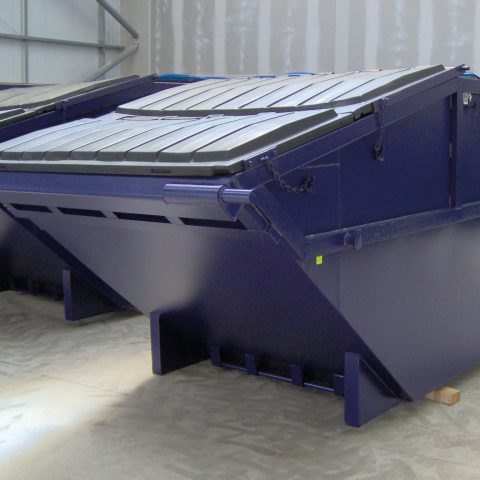

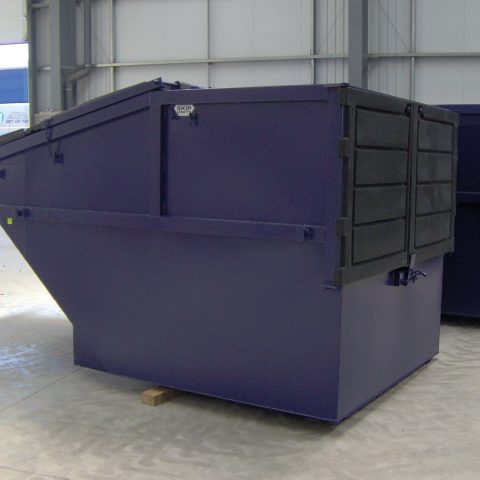

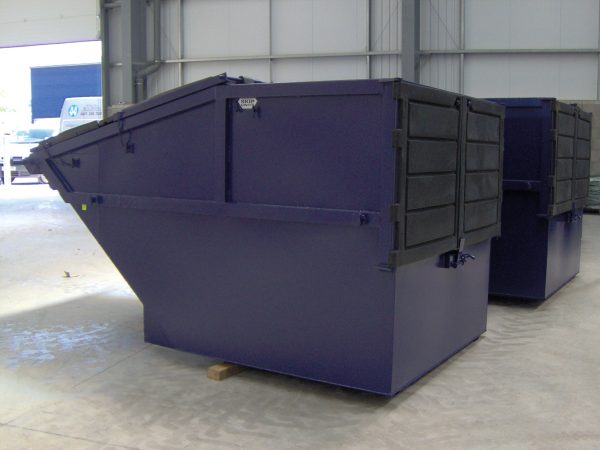

- Lift up half height rear plastic door
- Yellow ends
- Marker boards

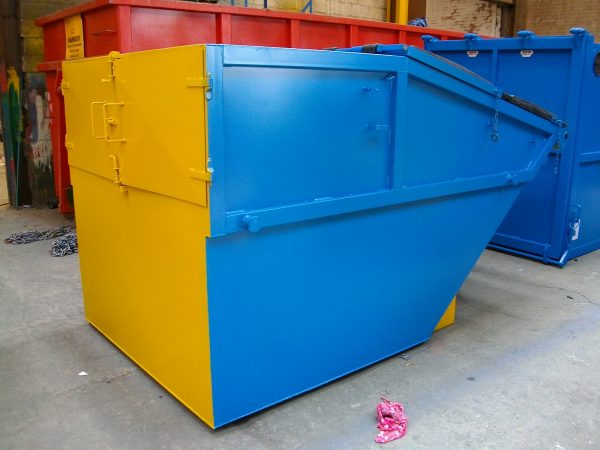

- 2 colours
- Stencils/vinyls
- Drain holes
| Popular Sizes (cuyd) | Length (mm) | Width (mm) | Height (mm) | Weight |
|---|---|---|---|---|
| 6 | 2530 | 1865 | 1780 | 660kg |
| 8 | 4030 | 1865 | 1780 | 760kg |
| 10 | 4070 | 1865 | 1780 | 860kg |
| 12 | 4070 | 1865 | 1925 | 960kg |

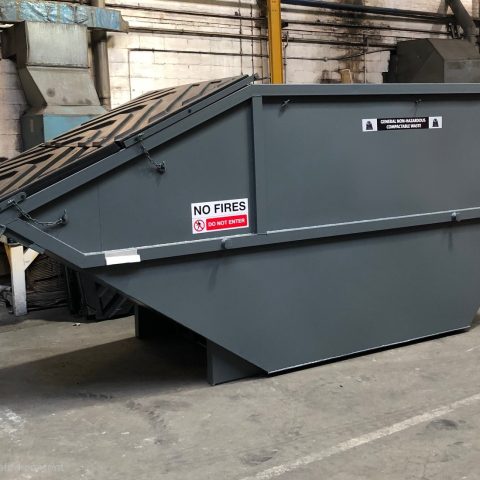

| 14 | 4330 | 1865 | 2075 | 1060kg |

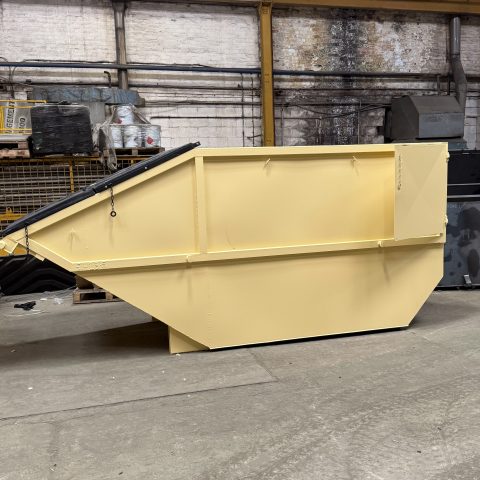

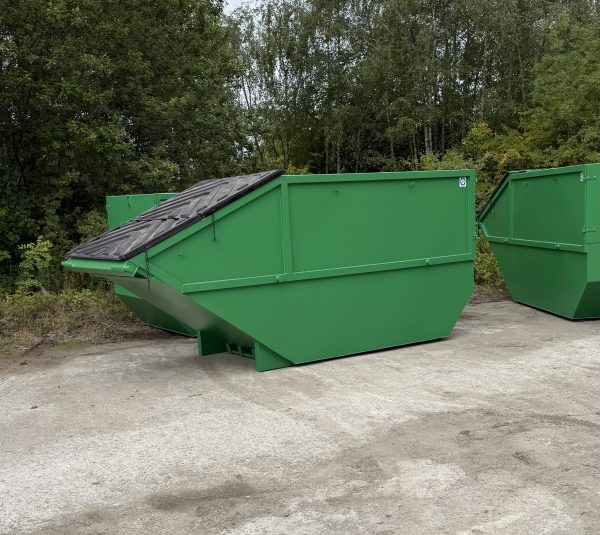

| 16 | 4635 | 1865 | 2095 | 1160kg |
