Standard specification
- To suit standard lifting equipment
- 4mm base and ends
- 3mm sides and roof

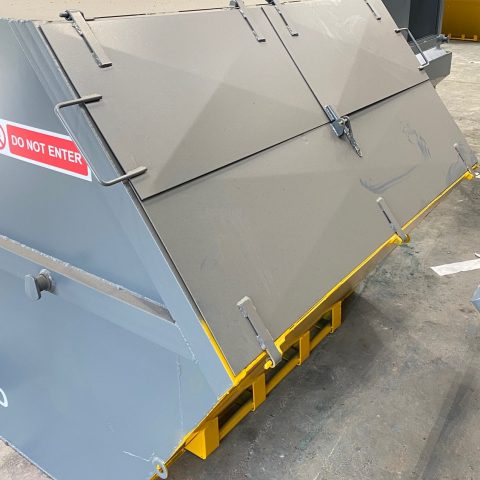

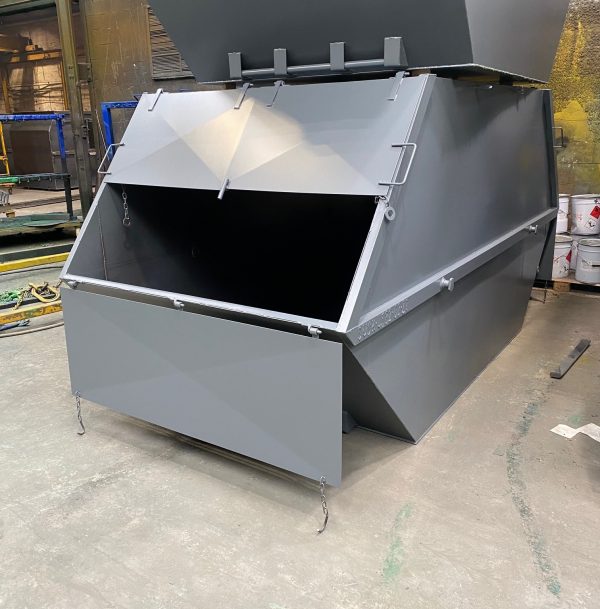

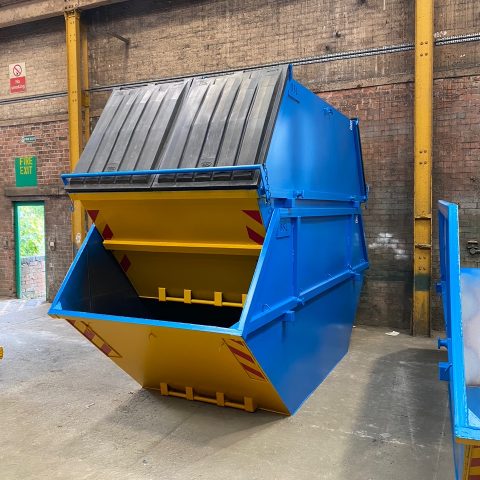

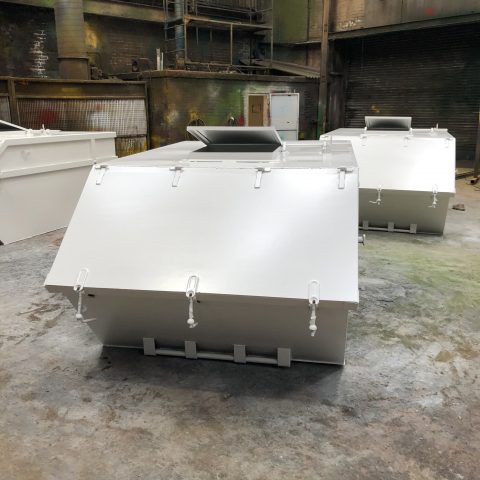

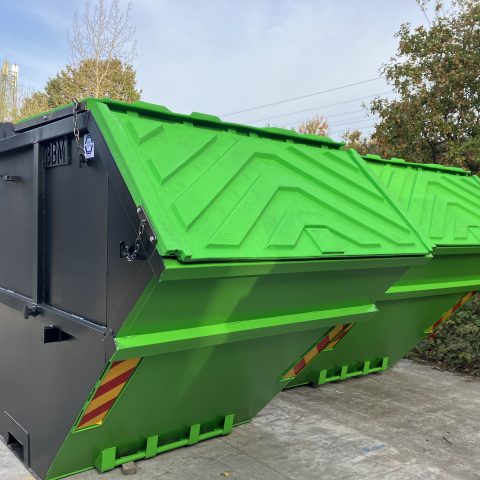

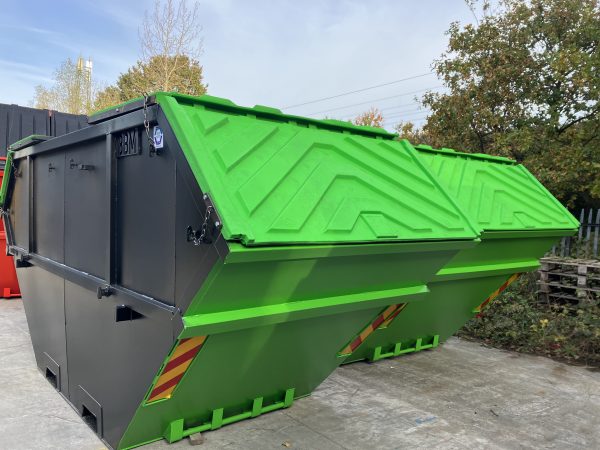

- Lockable lids
- Single rail
- Forged lifting lugs with backing plate
- Fully welded external seams and
- stitched channels
- Chip breakers
- Standard tip bars
- 76mm x 38mm RSC bracing
- Weld numbers
Optional extras

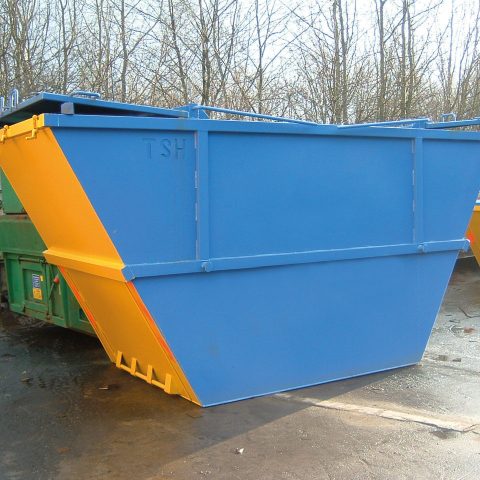

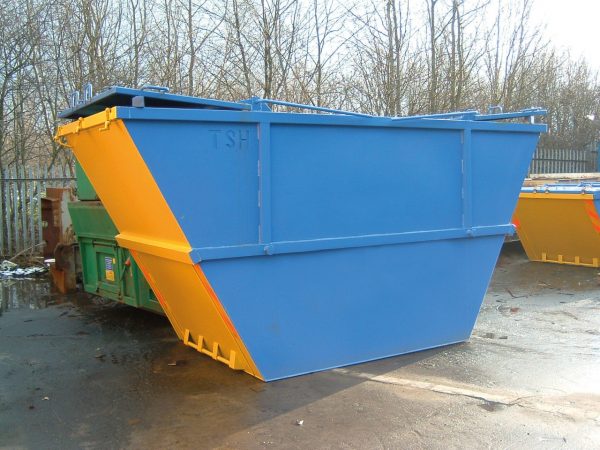

- Closed flat top
- Yellow ends
- Marker boards (pair)
- Protective edge marker boards
- 2 colours
- Stencils/vinyls
- Drain holes
- Inside primer
- Inset tip bar
- Full length gusset
- Profiled ID plates
- 100 x 50 PFC bracing
| Popular Sizes (cuyd) | Length (mm) | Width (mm) | Height (mm) | Weight |
|---|---|---|---|---|
| 6 | 2945 | 1865 | 1236 | 562kg |
| 8 | 3090 | 1865 | 1537 | 628kg |
| 10 | 3863 | 1865 | 1562 | 640kg |
| 12 | 3853 | 1865 | 1866 | 726kg |
| 14 | 4005 | 1865 | 2050 | 838kg |
| 16 | 4152 | 1865 | 2047 | 849kg |
